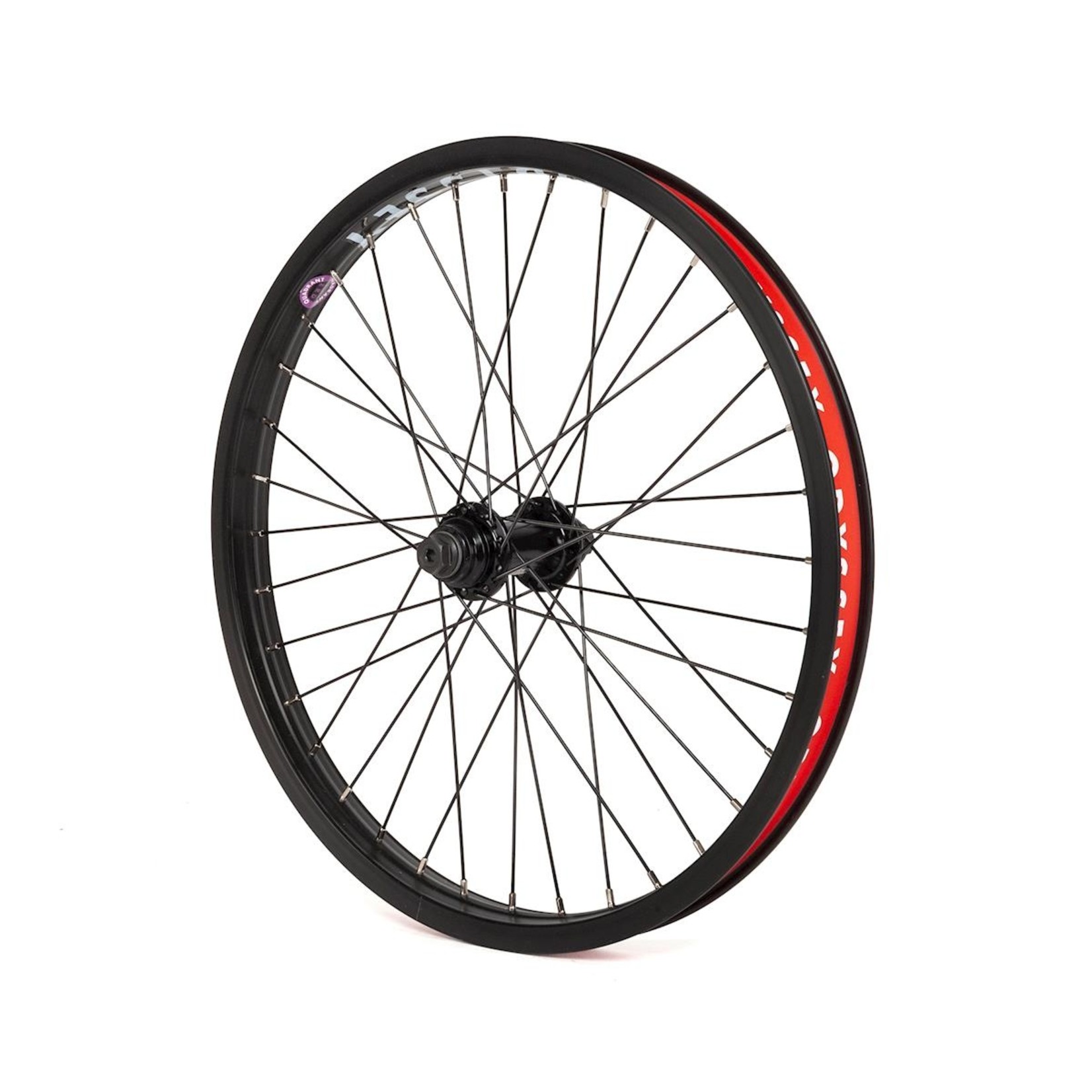

Odyssey's Quadrant Front Wheel features the C5 Front Hub laced to the Quadrant Rim. The C5 hub is a lightweight, affordably priced hub designed for durability. Built around proven 3/8" axle bolts, a strong, chromoly female axle and solid sealed cartridge bearings. The Quadrant rim is one of the few pinned rims that receives regular and unquestioned use by pro-level riders. The rim uses a unique pinned junction design with offset spoke drilling, this rim is both strong and light. Plus, this package includes a set of replaceable plastic hub guards to help protect your investment!
Features:
- C5 Front Hub
- 36-H, 6061 T-6 aluminum hub shell
- 6902 sealed cartridge bearings
- 15mm 4130 chromoly female axle
- 3/8" heat-treated chromoly axle bolts w/17mm wrench flats and 6mm hex slots
- Replaceable plastic hub guards (compatible with Odyssey/G-Sport hubs)
- Quadrant Rim
- Lightweight and affordable
- Unique pinned junction
- Directional spoke hole drilling
- 36-H
Specifications:
- Hub:
- Effective Flange Diameter: 42mm
- Flange to Center Distance: 28mm
- Rim:
- Size: 36-hole 20"
- Material: 6061-T6 aluminum
- Width: 34mm
- Height: 18mm
- ERD: 392mm
- Weight: 420 grams (14.8 oz)
